The Varilite Icon Back System Mid support the user to just below the scapula so the back does not interfere with arm movement during propelling or other activities. The Icon Mid Back shell provides mild lateral support.  The back features an enhanced rollover cushion to protect the user and provides maximum comfort.

The Icon Mid Back System is a good choice for people who want fast installation, adjustment versatility, and simple operation. The Icon Mid Back attaches to the wheelchair using adjustable VariLock^™ hardware, and includes a VARILITE® air-foam floatation cushion for excellent comfort.

Operating the system is easy.  Open the caps and slide the back support out of the hardware. The caps stay in an open position until the back is removed, making it simple to remove the support with one hand or limited dexterity. The hardware guides the back support into position and the caps lock securely into place. Orange safety markings alert the user that a cap is open and not in the locked position.

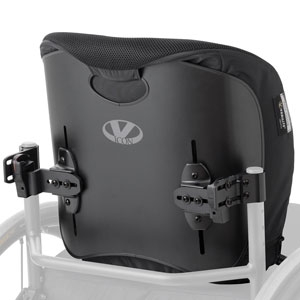

Hardware and Shell
The Icon^™ Back System installs on a wheelchair quickly and easily. Only two parts need to be attached to the wheelchair – all other hardware components are pre-installed. All adjustment screws are the same. Only a single tool is needed. The Icon hardware provides a wide range of seat depth adjustment, without needing special, extra length parts. Posterior seat depth can be increased or anterior depth decreased by reversing the hardware.

Adjusting Depth, Angle, Height, and Width of Icon Back System hardware is simple. All adjustment screws are accessible from the rear of the back support or from the outside of the Cane Brackets. Adjustments can be made while the user is in the wheelchair.

Once adjusted, Icon hardware stays in place. Cane Brackets clamp securely and will not slip. The innovative Adjuster Plate mechanism for recline adjustment is positive locking to prevent the back support from moving during Activities of Daily Living or other times when heavy loads are placed on it.

Operating the system is as easy as opening the slide caps and sliding the back support out of the hardware. Slide caps stay in an open position until the back is removed, making it simple to remove the support with one hand or limited hand function. The hardware guides the back support into position with minimal effort and locks it securely into place. Orange safety markings alert the user that a cap is open and not in the locked position.

Rollover Cushion
The Icon^™ Back System features an innovative rollover cushion to protect people from contact with the edge of the shell during extension or weight shifting activities. The cushion is secured inside the cover so it stays in place. The wheelchair user can perform daily activities with confidence and in comfort. The padding in the cover provides extra protection. The Icon Back System incorporates a VARILITE® air-foam floatation cushion. Sculpted foam fits the shell contour without bunching. Multi-stiffness foam is thickest along the vertebral column. Soft foam protects the sensitive areas of the spine while firmer foam supports the sides of the trunk. A two-way air valve allows air in and out of the cushion for a custom fit and adjustable comfort.

Breathable Fabric
Spacer knit fabric on the outside of the cover increases air-flow between the user and the back support. Reticulated foam sewn under the spacer knit fabric provides additional air exchange plus pressure distribution The Icon Backrest System cover meets ISO 7176-16 ignition resistance standard for upholstered wheelchair components. The cover is machine washable.
